| Specifications | Imperial | Metric |
|---|---|---|
| Capactity 9″ Rubber | 480 cu ft | 14 m3 |
| Minimum Horsepower | 95 HP | |
| Total Width | 105 in | 267 cm |
| Total Length | 236 in | 599 cm |
| Total Height | 105 in | 267 cm |
| Loading Height | 104 in | 264 cm |
| Empty Weight | 11,000 lbs | 4,990 kg |

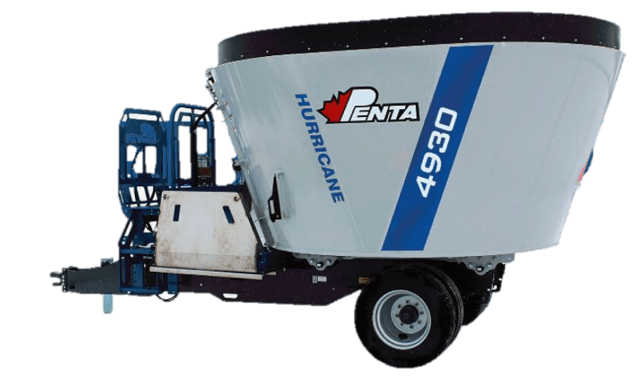

One look at our Hurricane augers and you will see their strength and power. Critical to our auger design is durability. With high-intensity forces encountered in the initial stages of cutting, the metal blades of the auger are subjected to severe pressure as the turning motion begins and the feed ingredients are pushed upwards. From the 3/4″ steel that is cold pressed into shape for our flighting, to the massive 3/8″ thick tube, the flighting is expertly welded. Developed over years of testing and design, you can clearly see this is our best, most rugged and reliable auger yet.
The angle and diameter of the flighting are designed to work with the tub for the best mixing and processing of your ration. The pyramid shape of the Hurricane Auger reduces pressure on the system’s moving parts, dispersing the forces through the body of the auger and prolonging the life of the blades. Our unique design ensures maximum blade contact with fibrous raw materials to make the cutting process rapid and complete. The high-wear stainless steel lead edge on the sweep has virtually no gap at the floor, dramatically reducing horsepower and providing excellent clean out. The bolt-on stainless steel plow blade keeps material from building up on the sides and turns material for even more mixing action.

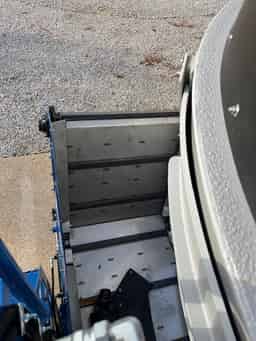

Conveyor Systems
Optional conveyors are configured to match the needs of your individual operations with a choice of either a Flip-up or Dual configuration. Built for long life and dependability, each system is equipped with C188 chain, the heaviest cast chain in the industry. This chain is driven using a very powerful North American made hydraulic motor.
Flip-up conveyors are configured for either left or right hand delivery, allowing you to reach up and out to get the feed into bunks. Our standard conveyor includes a stainless steel pan and rails. we offer many available options to customize these conveyor systems to feed into a variety of bulks and feed alleys.
